Chain Conversion Kit for Cush Drive Hub, 2009-Up Touring Twin Cam and M8

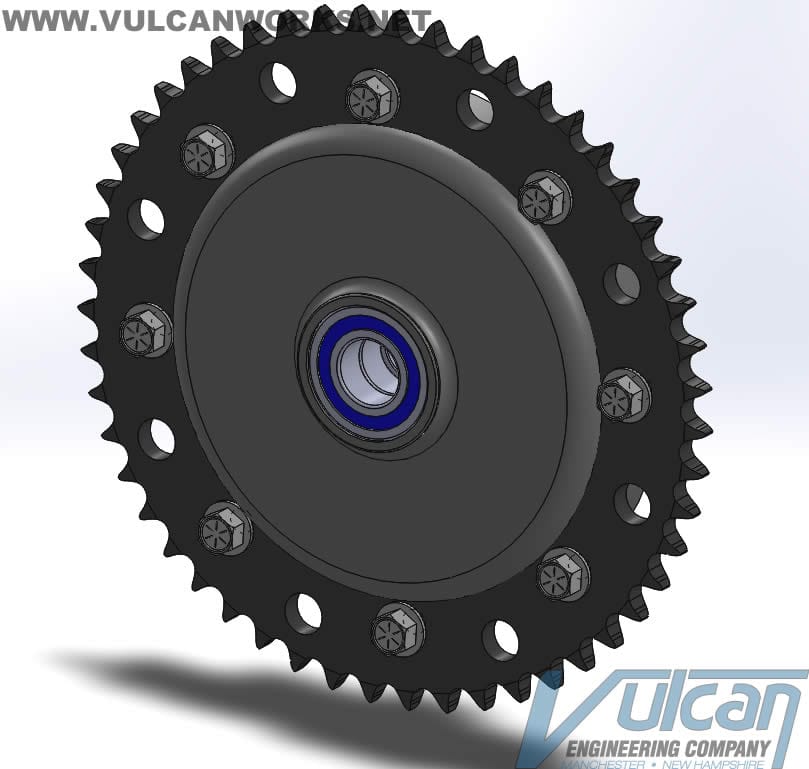

Our High Strength Billet Aluminum Hub is a drop in replacement for the stock pulley.

Swapping to a Chain Final Drive is less work than changing a broken belt. As the swingarm does not need to be removed.
You will never have to remove your primary or swingarm again because of broken belts!

Fits 2009-2024 Touring Models (Twin Cam & Milwaukee 8 Engines)

Interchangeable Sprocket Design
Available with 51, 52, 55, or 58 Tooth Sprockets

Our Sprocket sizes are selected to allow maximum use of the small axle adjustment slot on these bikes, Not just random sizes that put the axle at the end of adjustment.

All Sprockets available separately

All of our Sprockets are Heat Treated C1045 Steel for long lasting durability.
Aluminum sprockets do not live for long on a Harley!


24T Front Sprocket and 51T Rear Sprocket is equivalent to the stock belt drive gearing.
55T Rear Sprocket= 7.5% Deeper
58T Rear Sprocket= 13% Deeper
49T Rear Sprocket= 4% Overdrive


Fully Assembled with High Quality Koyo Bearings and ready to install.

We have 3 Grades of Sealed Chains available:

• Standard O-Ring Chain
• X-Ring Seal- Longer Lasting Seal, Same Strength as O-Ring
• BMZR- Sealed Drag Race Chain, Strongest Available and recommended for all baggers.

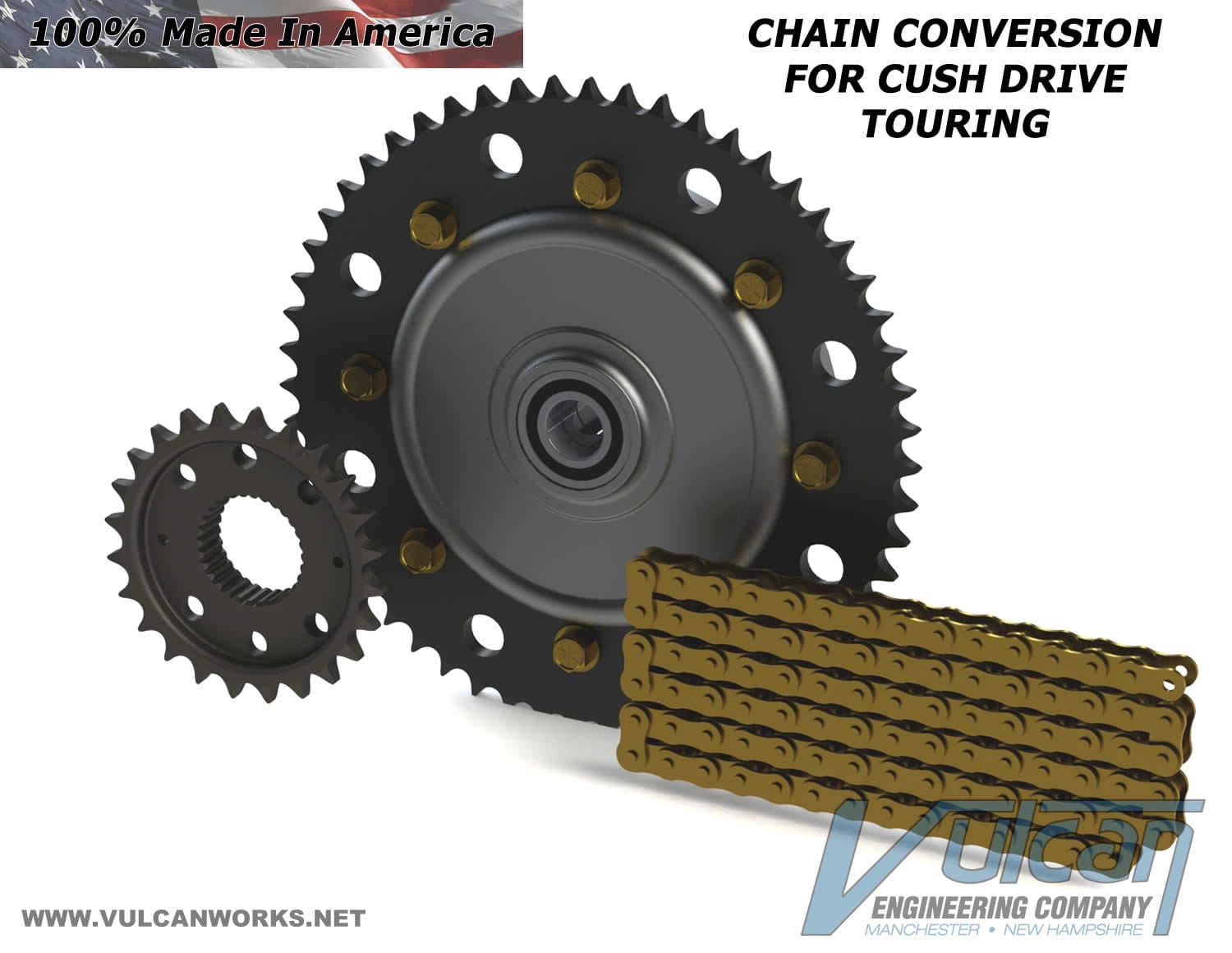

Kit Includes:

• Front Sprocket
• Rear Chain Conversion Hub
• Rear Sprocket of your choice
• Grade-8 Hardware
• Chain of your choice

Our 6 Speed Transmission Sprocket

• Heat Treated Steel
• 24 Tooth

Chain Info:

530 O-Ring(BMOR) Chain

• 9,700lbs Tensile Strength
• Includes Rivet Master Link
• Component designs optimized with computer analysis provides higher tensile strength.
• Specially controlled heat treatment means tougher material.
• Reinforced roller offers higher impact resistance and longer durability.

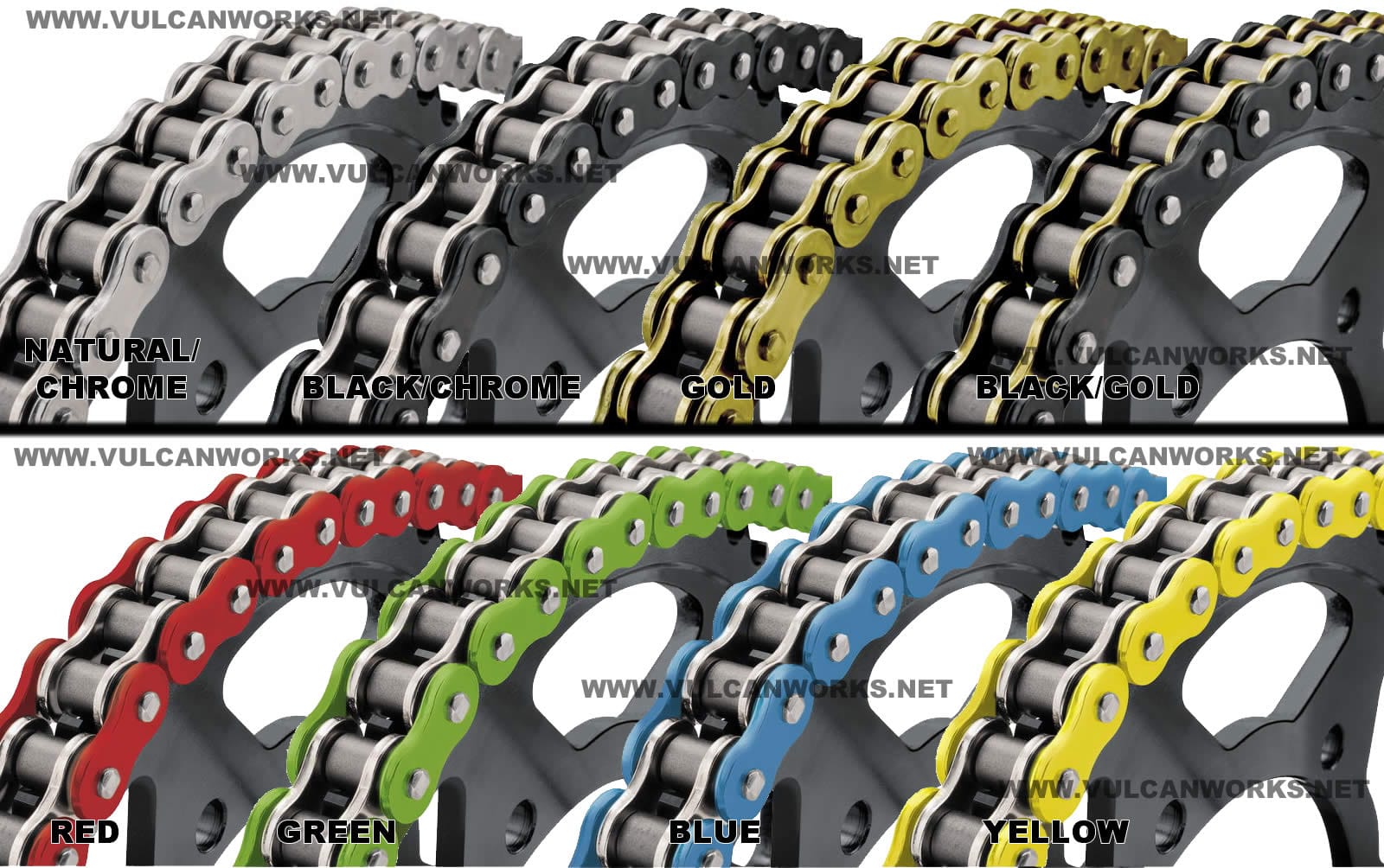

• Available in Natural, Black, Gold or Black/Gold


530 X-Ring (BMXR) Chain

• 9,700lbs Tensile Strength
• Offering 1.5 to 2x longer wear resistance than regular O-ring chains.
• Each refined component, designed with computer analysis, provides higher tensile strength.
• Specially controlled heat treatment means tougher material and more durability.
• Quad seal ring and reinforced pin and roller provide superior wear resistance, higher impact resistance and fatigue strength.
• Quad seal ring offers less friction, which minimizes power loss, almost half that of standard O-ring chain.


530 High Strength BMZR Chain- Recommended for all baggers

• 11,200lbs Tensile Strength
• Includes Rivet Master Link
• Specifically developed for today’s high-performance sport machines.
• High-quality components coupled with a factory-greased seal ring ensures superior rigidity.
• High-tensile steels used throughout the chain components; larger pins mean loads spread out over wider area, resulting in longer life and more strength.
• Specially controlled heat treatment means tougher material and more durability.
• Available in Chrome, Black, Gold or Black/Gold

530 EK 3D Chain- High Strength, Recommended for all baggers

3D
parts are precisely manufactured, leading to a greater improvement of
transmission efficiency, better acceleration and efficient engine work.
Features an original special plate with a lightening hole. EK creates a
hole on both ends of a pin to lighten the chain without weakening the
plate according to computer analysis. The edge-cut inner plate reduces
friction and realizes smooth engagement with sprocket. This plate
enables the chain to be light, removes mud from the hole and dissipates
heat effectively.

• 11,400lbs Tensile Strength
• Includes Rivet Master Link
• Reduced friction
• Chromium carbide pin with lighten hole in end
• Inner plate with lighten hole
• Dimpled outer plate.
• QX-2 ring
