19″ Rear Wheel Kit for Sportsters XL

Adapts 2000-Up & 1984-99 19″ Front Mag Wheels to Rear of XL Sportsters
Use your stock Brake rotor and sprocket/pulley bolts
Stock bearings stay in the wheel, where they are the strongest.
Choose your Bike year from the list.

The 19″ wheel you use should match the year range of the bike you are putting it on.
Because 2005-07 bikes have different size front & rear axles, 2000-2007 front wheels need to be converted from 3/4″ to 1″ to use on 2005-07 Sportsters

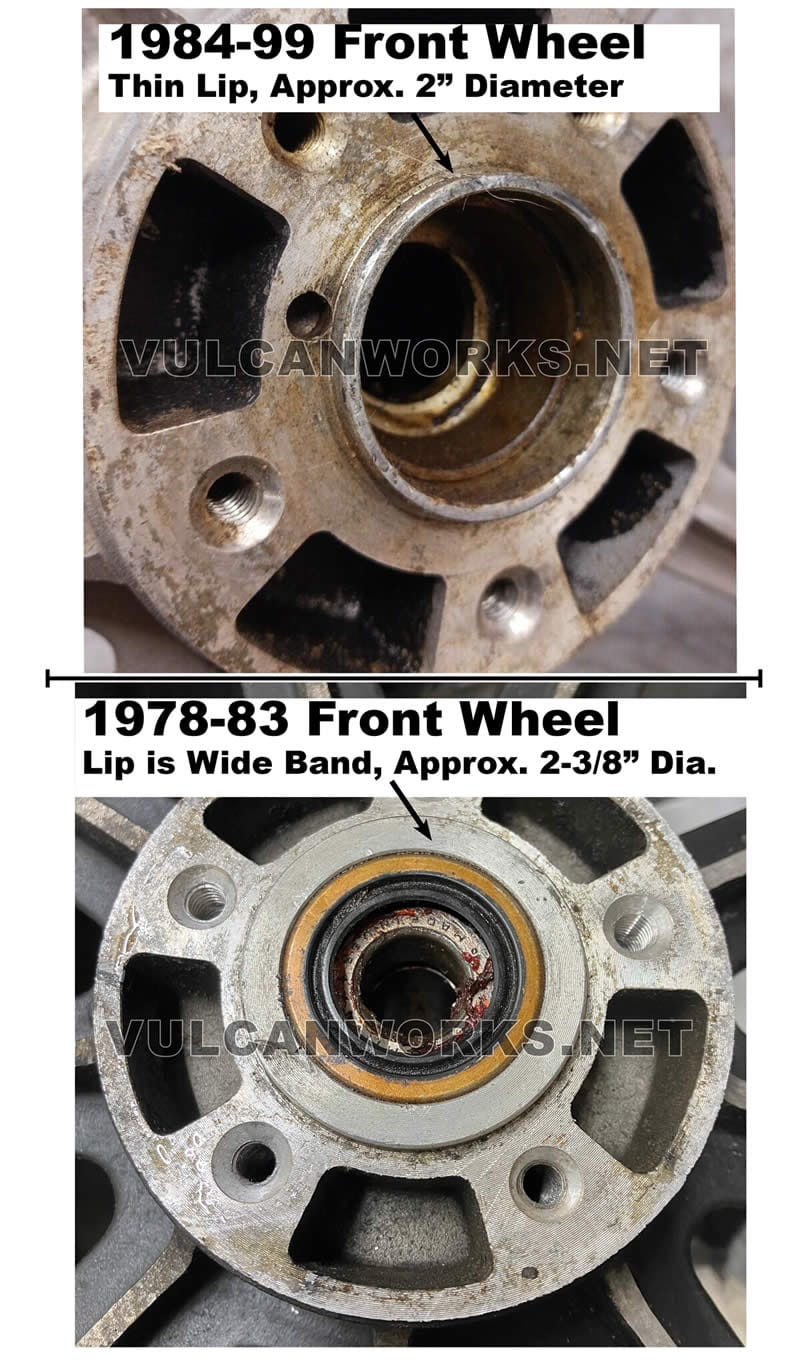

*If you have an 84-99 wheel and want to use it on a 2000-newer bike see this kit: https://www2.vulcanworks.net/store/19-rear-wheel-converison-kit-for-xl-sportsters-timken-to-sealed-bearing.html

*If you have an 78-83 wheel and want to use it on a 2000-newer bike see this kit: https://www2.vulcanworks.net/store/19-rear-wheel-converison-kit-1978-83-wheel-to-sealed-bearing.html

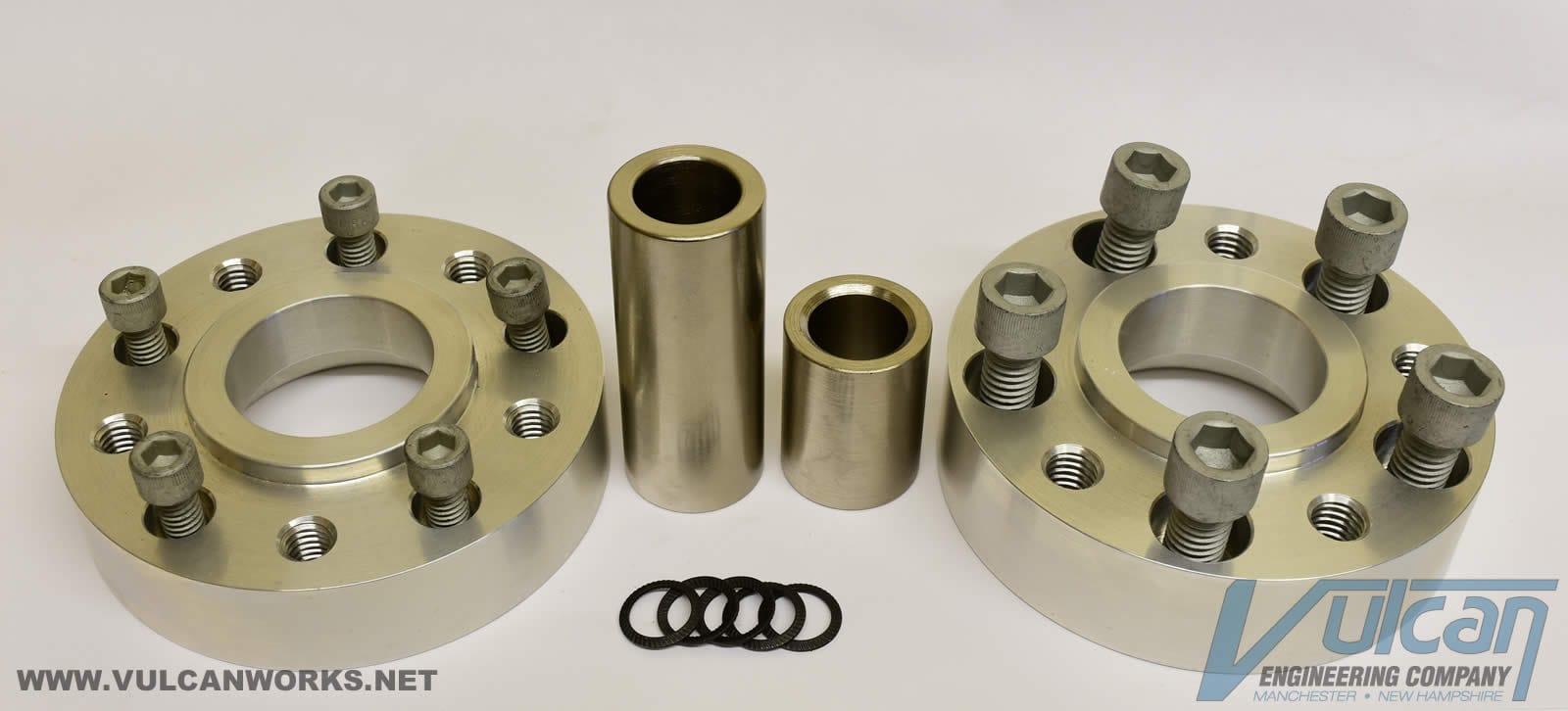

Includes:
Dual Pattern brake disk spacer
Dual Pattern pulley spacer
7/16-14 Spacer to wheel bolts- Grade 8
7/16 Lock Washers
5/16-18 Spacer to wheel bolts- Grade 8
2 Axle spacers

Wheel needs to drilled and tapped for 7/16-14 Thread for Sprocket side bolts.

Drill and tap set available separately when you buy this kit
Kit has

• High Quality “U” Drill
• High Speed Steel 7/14-14 Plug Tap
