Adapts 1984-1999 3/4″ Timken bearing rear wheels(9 Spoke mags or wire wheels) to be used on 2006-2017 Dyna
Uses original bearings in the wheel.
Wheel will drop in place of your current wheel, using our new conversion axle and axle spacers.
No other change needed.
Adapters included to use 2000-Up Brake Disk & Sprocket or Pulley
Pair with our Front kit to do a set of wheels #4751

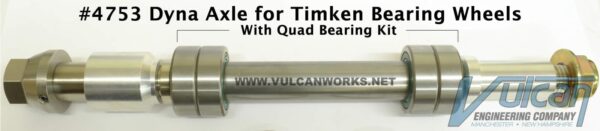

NOW AVAILABLE WITH QUAD SEALED BEARINGS
Timken bearing wheels have the bearings mounted much further inboard vs sealed bearing wheels.
The quad bearing setup makes the bearing load points on the axle wider (and closer to the swingarm). Increasing strength and reducing the possibilty of bent axles.
This is highly recommended if your going to beat on your bike.
Includes:

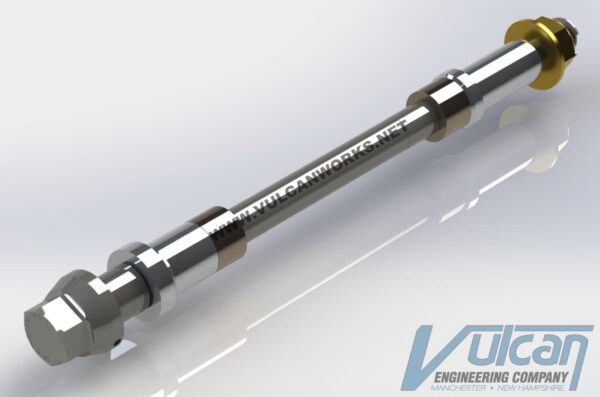

High Strength (Heat Treated) 17-4 Stainless Steel 3/4″ Axle made for 1″(2006-07) & 25mm(2008-17) Axle Dyna
Correct Axle Spacers
Special Adapter Spacer for Brake Caliper Mount
Grade 8 Axle Flange Lock-Nut
Adapters to use 2000-Up Sprocket/Pulley & Brake Disk
Briyen (verified owner) –
These guys are great!! Machine quality is second to none. There was a fitment issue, without question due to my hodgepodge of parts, but Vulcan came through with the correct spacers! Bought both front and rear conversion axles and couldn’t be happier.
Jason Lavender (verified owner) –
Kit seems to be made of high quality material..however, I’ve tried everything and went through the kit a few different times taking it off my 2015 fxdb..and, i can’t get it to stop making a clicking/popping noise when the rear wheel rotates slowly?
