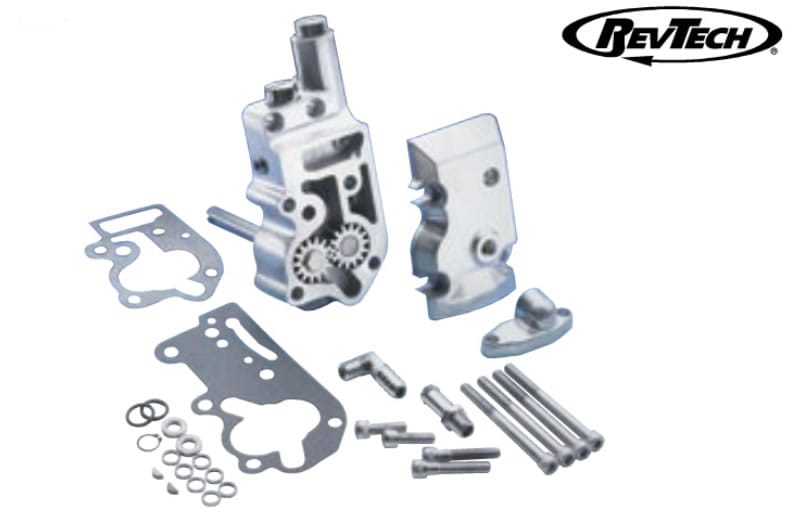

Revtech Polished Oil Pump Assembly for 1936-72 Big Twin

Features include an improved oil pressure regulation system that ensures perfect oil control to all areas of the motor, especially during initial start-up.
All the oil line fittings and mounting hardware are chrome-plated. The oil pump body and cover are highly polished and have a redesigned smooth outer surface with counterbored holes for the sockethead mounting hardware. The oil feed line can be routed to the stock location at the top of the cover or directly to the pressure gears through a fitting located at the bottom of the cover.

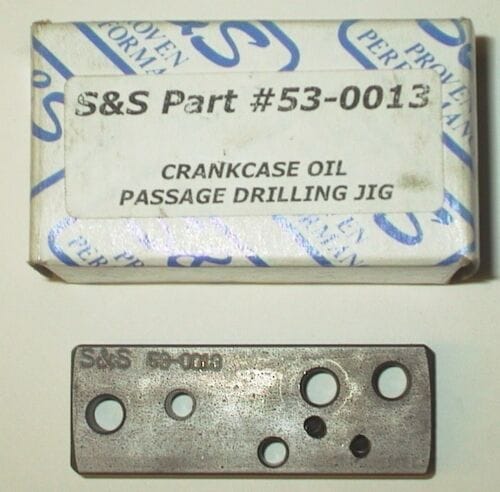

Engines 1970 thru 1972 will require a small drilling operation and plugging step. Use S&S drill fixture 53-0013 for this.
Each kit includes all the snap rings, keys, gaskets, shaft, fittings, mounting hardware (1/4"-24 early-style and 1/4"-20 late-style) and detailed instructions.

For 1936-72 Knuckedhead, Panhead & Shovelhead
