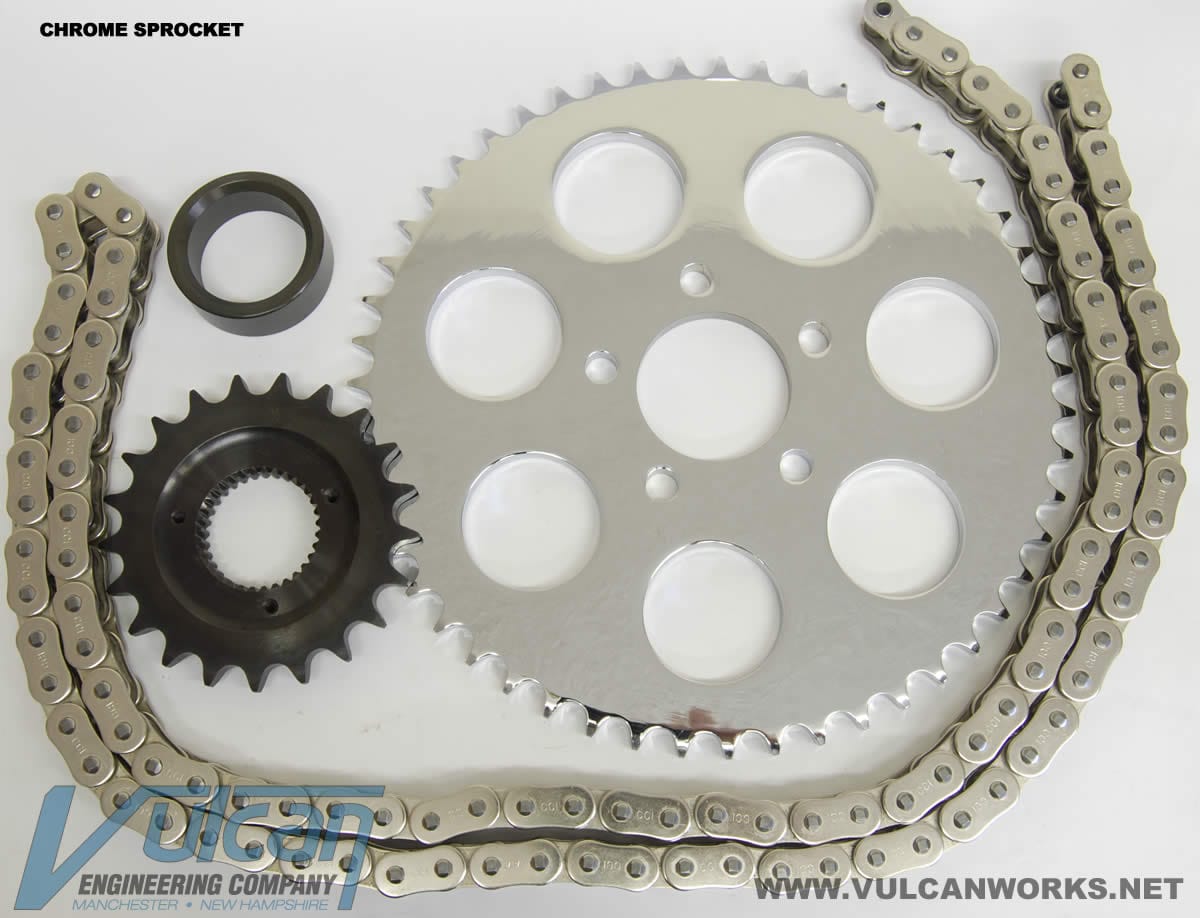

Softail Chain Conversion Kit, 1987-2006

Conversion kit includes everything needed to covert your 1987-2006 5 speed belt drive to a heavy duty 530 O-ring chain:
This kit is for a stock size rear tire.

Please note this will not work for 2006 FXST with 200 Tires

Harley changed the belt pulleys often on the softails, the year chart below shows the equivalent chain sprockets:
1991-92, 1994, 2000-2006…..23/47
1993……………………………….23/46
1995-99…………………………..23/51

Choose a smaller front sprocket and/or larger rear sprocket for more acceleration/less top speed.
Choose a larger front sprocket and/or smaller rear sprocket for more top speed/less acceleration

Transmission Sprocket

• Heat Treated Steel
• 21, 22, 23 or 24 Tooth

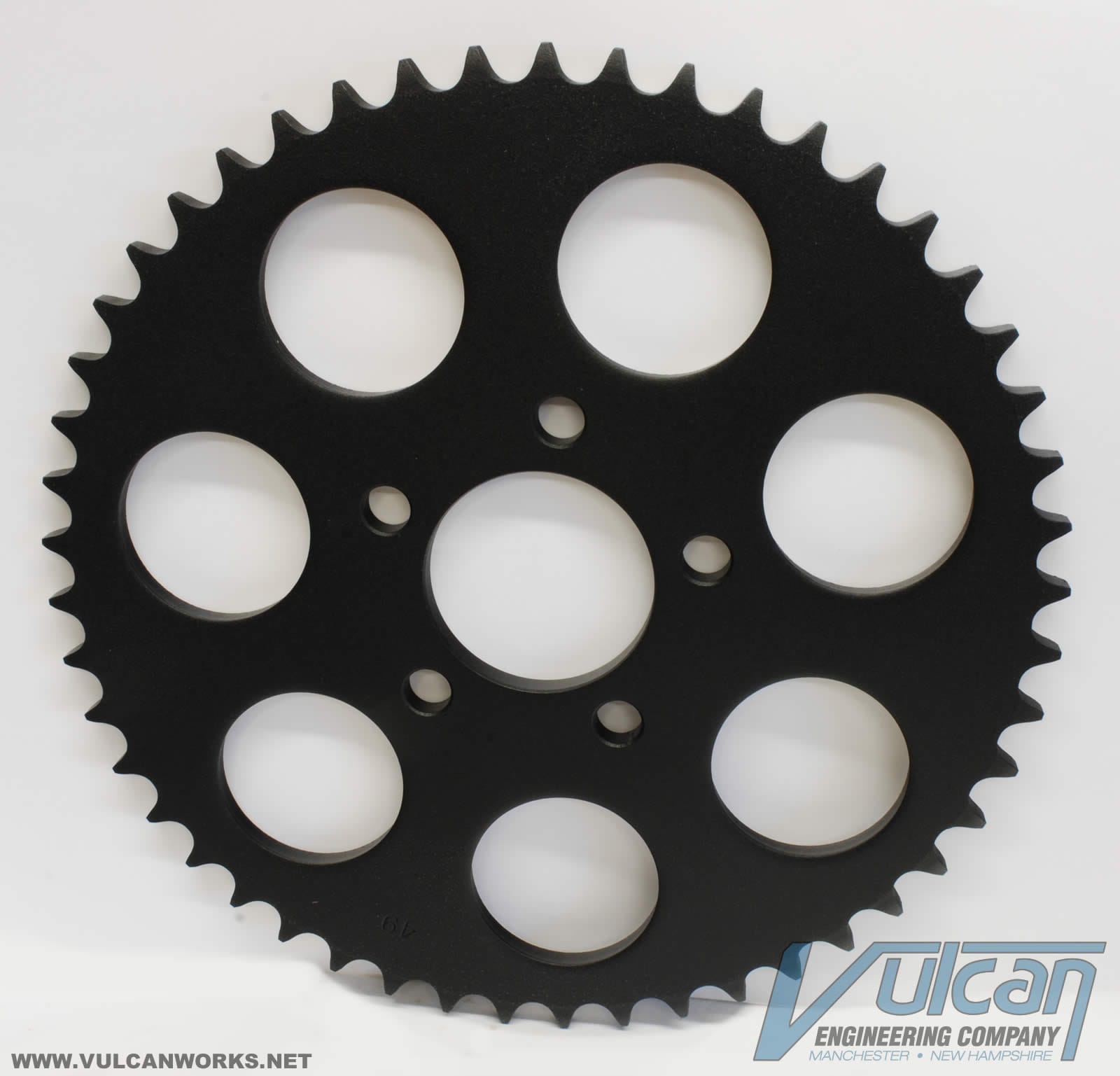

Steel Rear Wheel Sprocket

• Full thickness for 530 Chain, beware of other thin .25 thickness sprockets out there.
• Steel Sprockets last longer than aluminum sprockets and are ideal for high load situations (Burnouts, Wheelies, High Horsepower Engines)
• Black Powdercoat Steel or Chrome plated Steel
• 48, 49, or 51 Tooth Available

Belt to Chain Transmission sprocket spacer

• Special made to use stock mainshaft seal with correct length for chain sprockets.
• Included in all kits.

Chain Info:

530 O-Ring(BMOR) Chain

• 9,700lbs Tensile Strength
• Includes Rivet Master Link
• Component designs optimized with computer analysis provides higher tensile strength.
• Specially controlled heat treatment means tougher material.
• Reinforced roller offers higher impact resistance and longer durability.
• Available in Natural, Black, Gold or Black/Gold


530 X-Ring (BMXR) Chain

• 9,700lbs Tensile Strength
• Offering 1.5 to 2x longer wear resistance than regular O-ring chains.
• Each refined component, designed with computer analysis, provides higher tensile strength.
• Specially controlled heat treatment means tougher material and more durability.
• Quad seal ring and reinforced pin and roller provide superior wear resistance, higher impact resistance and fatigue strength.
• Quad seal ring offers less friction, which minimizes power loss, almost half that of standard O-ring chain.

530 High Strength BMZR Chain- Recommended for all baggers

• 11,200lbs Tensile Strength
• Includes Rivet Master Link
• Specifically developed for today’s high-performance sport machines.
• High-quality components coupled with a factory-greased seal ring ensures superior rigidity.
• High-tensile steels used throughout the chain components; larger pins
  mean loads spread out over wider area, resulting in longer life and
  more strength.
• Specially controlled heat treatment means tougher material and more durability.
• Available in Chrome, Black, Gold or Black/Gold

530 EK 3D Chain- High Strength, Recommended for all baggers

3D
parts are precisely manufactured, leading to a greater improvement of
transmission efficiency, better acceleration and efficient engine work.
Features an original special plate with a lightening hole. EK creates a
hole on both ends of a pin to lighten the chain without weakening the
plate according to computer analysis. The edge-cut inner plate reduces
friction and realizes smooth engagement with sprocket. This plate
enables the chain to be light, removes mud from the hole and dissipates
heat effectively.

• 11,400lbs Tensile Strength
• Includes Rivet Master Link
• Reduced friction
• Chromium carbide pin with lighten hole in end
• Inner plate with lighten hole
• Dimpled outer plate.
• QX-2 ring

***IF YOU DONT SEE A SPROCKET OR CHAIN OPTION IN THE DROP DOWN MENUS IT MEANS WE ARE OUT OF STOCK OF THAT SPROCKET OR CHAIN***
