Softail Fat Bob & Low Rider Chain Conversion Kit, 2018-UP M-8

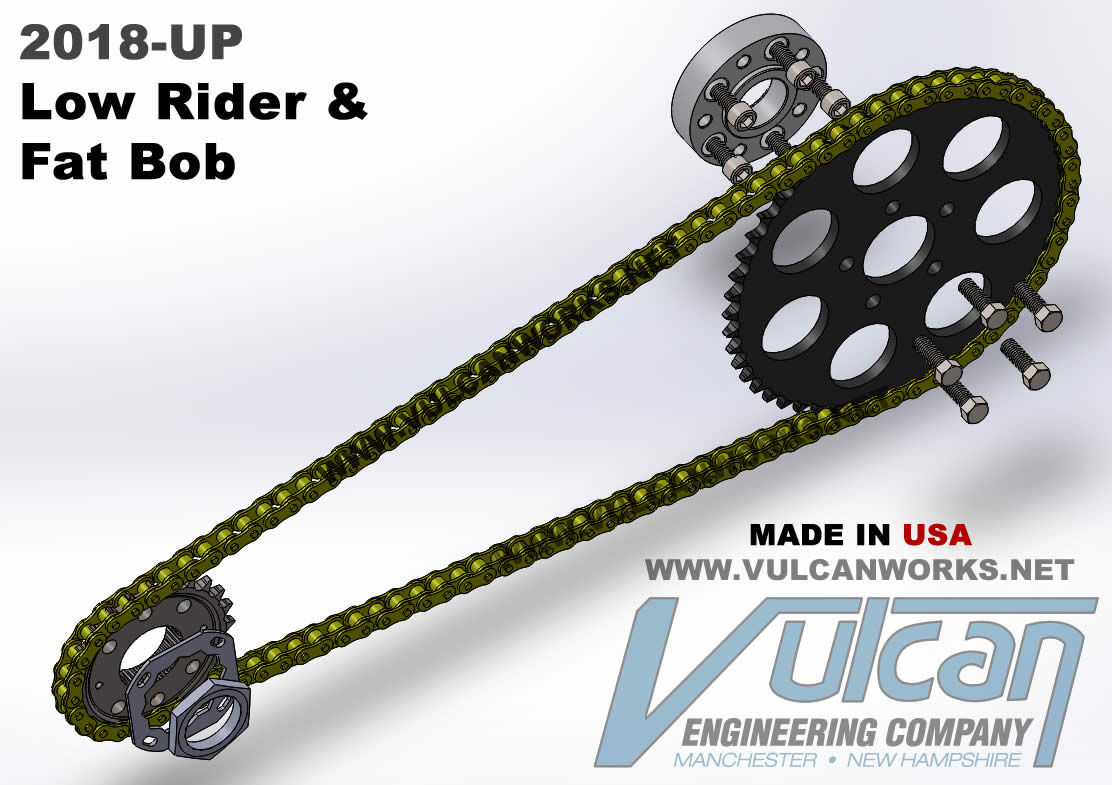

Our Conversion kit includes everything needed to covert your 2018-UP Milwaukee 8 Low Rider & Fat Bob belt drive to a heavy duty 530 O-ring chain

Fits:
Low Rider, Low Rider S, Low Rider ST & Fat Bob
Does not fit FXDR


24T Front Sprocket and 51T Rear Sprocket is equivalent to the stock belt drive gearing.
49T Rear Sprocket= 4% Overdrive
48T= 6% Overdrive
—————
53T= 7% Deeper
55T= 10% Deeper
58T= 16% Deeper

Includes items Below:

Our 6 Speed Transmission Sprocket

• Heat Treated Steel
• 24 Tooth
•  Bigger offset for 180 tires












Steel Rear Wheel Sprocket

• Full .350 thickness for 530 Chain, beware of other thin .25 thickness sprockets out there.
• Steel Sprockets last longer than aluminum sprockets and are ideal for high load situations (Burnouts, Wheelies, High Horsepower Engines)
• Black Powdercoat Steel or Chrome plated Steel
• 48, 49, or 51 Tooth Available





Correct Size Sprocket Spacer

• Tested by us to verify fitment
• Billet Aluminum







Grade ‘8’ Hex Head Bolts for Rear Sprocket

• 5 Grade ‘8’ Hex Head Bolts
• With Grade 8 Lock Washers





Lock Plate also available

• Stainless Steel
• Bend Tabs over to secure bolt







***IF YOU DONT SEE A SPROCKET OR CHAIN OPTION IN THE DROP DOWN MENUS IT MEANS WE ARE OUT OF STOCK OF THAT SPROCKET OR CHAIN***

Chain Info:
ALL CHAINS INCLUDE A RIVET MASTER LINK, CLIP LINKS THAT DO NOT REQUIRE A TOOL TO INSTALL ARE AVAILABLE HERE

530 O-Ring(BMOR) Chain

• 9,700lbs Tensile Strength
• Includes Rivet Master Link
• Component designs optimized with computer analysis provides higher tensile strength.
• Specially controlled heat treatment means tougher material.
• Reinforced roller offers higher impact resistance and longer durability.
• Available in Natural, Black, Gold or Black/Gold


530 X-Ring (BMXR) Chain

• 9,700lbs Tensile Strength
• Includes Rivet Master Link
• Offering 1.5 to 2x longer wear resistance than regular O-ring chains.
• Each refined component, designed with computer analysis, provides higher tensile strength.
• Specially controlled heat treatment means tougher material and more durability.
• Quad seal ring and reinforced pin and roller provide superior wear resistance, higher impact resistance and fatigue strength.
• Quad seal ring offers less friction, which minimizes power loss, almost half that of standard O-ring chain.


530 High Strength BMZR Chain- Recommended for all baggers

• 11,200lbs Tensile Strength
• ONLY AVAILABLE WITH Rivet Master Link
• Specifically developed for today’s high-performance sport machines.
• High-quality components coupled with a factory-greased seal ring ensures superior rigidity.
• High-tensile steels used throughout the chain components; larger pins mean loads spread out over wider area, resulting in longer life and more strength.
• Specially controlled heat treatment means tougher material and more durability.
• Available in Chrome, Black, Gold or Black/Gold

530 EK 3D Chain- High Strength, Recommended for all baggers

3D parts are precisely manufactured, leading to a greater improvement of transmission efficiency, better acceleration and efficient engine work.
Features an original special plate with a lightening hole. EK creates a hole on both ends of a pin to lighten the chain without weakening the plate according to computer analysis. The edge-cut inner plate reduces friction and realizes smooth engagement with sprocket. This plate enables the chain to be light, removes mud from the hole and dissipates heat effectively.

• 11,400lbs Tensile Strength
• ONLY AVAILABLE WITH Rivet Master Link
• Reduced friction
• Chromium carbide pin with lighten hole in end
• Inner plate with lighten hole
• Dimpled outer plate.
• QX-2 ring
