Touring Chain Conversion Kit, 2008 Only

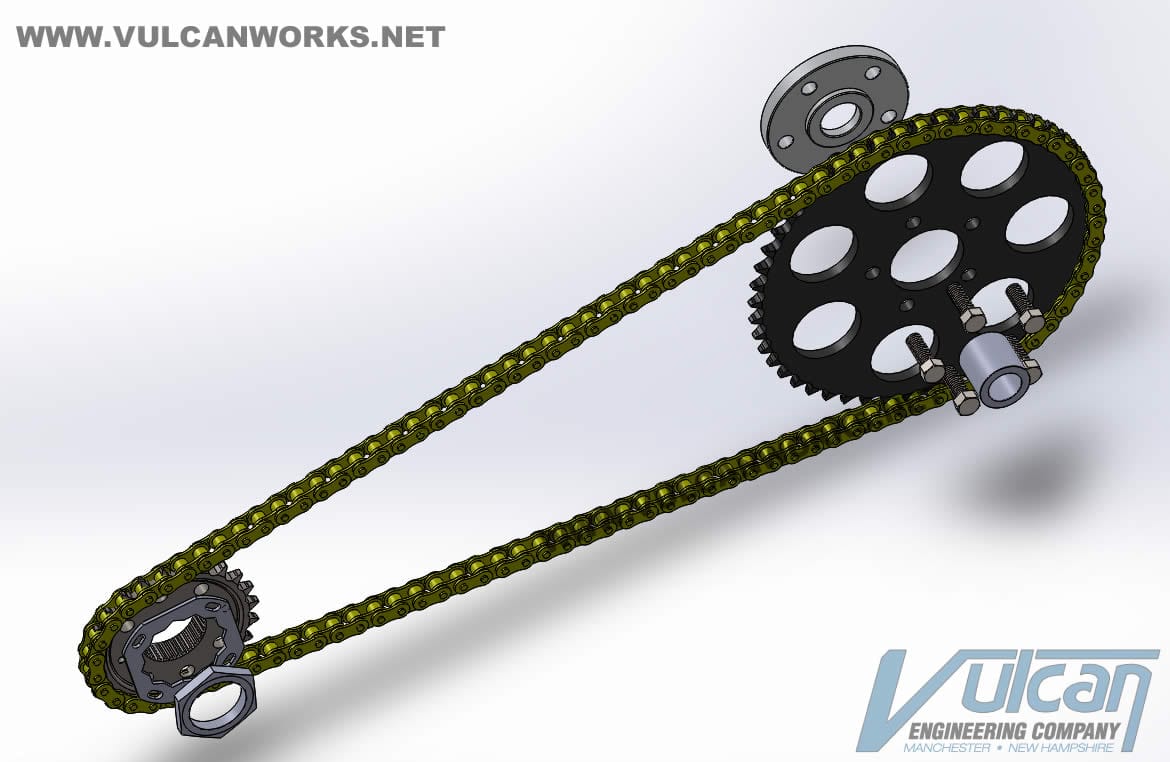

Our Conversion kit includes everything needed to covert your 2008 6 Speed FLH/FLT belt drive to a heavy duty 530 O-ring chain.

This kit eliminates the cush drive, as they simply un-bolt from the wheel on 2008’s.

This kit is for stock width tires

24T Front Sprocket and 49T Rear Sprocket is equivalent to the stock belt drive gearing.
24T/ 51T Rear Sprocket= 3% Lower
24T/ 48T Rear Sprocket= 3% Overdrive
25T/48T Rear Sprocket= 7% Overdrive

Includes items Below:

  6 Speed Transmission Sprocket

• Heat Treated Steel
• 24 Tooth

Steel Rear Wheel Sprocket

• Full .350 thickness for 530 Chain, beware of other thin .25 thickness sprockets out there.
• Steel Sprockets last longer than aluminum sprockets and are ideal for high load situations (Burnouts, Wheelies, High Horsepower Engines)
• Black Powdercoat Steel
• 48, 49, or 51 Tooth Available

Pulley Spacer

• Spacers have locating diameters to center sprocket perfectly on wheel.
• Correct size for your bike

Ultra Coated Grade ‘8’ Hex Head Bolts for Rear Sprocket

• 5 Grade ‘8’ Hex Head Bolts
• Five times as corrosion resistant as standard zinc-plated screws.
• With Lock Washers

Axle Spacer

• Replaces Cush drive assembly

We have 3 Grades of Sealed Chains available:

• Standard O-Ring Chain
• X-Ring Seal- Longer Lasting Seal, Same Strength as O-Ring
• BMZR- Sealed Drag Race Chain, Strongest Available and recommended for all baggers.

Chain Info:

530 O-Ring(BMOR) Chain

• 9,700lbs Tensile Strength
• Includes Rivet Master Link
• Component designs optimized with computer analysis provides higher tensile strength.
• Specially controlled heat treatment means tougher material.
• Reinforced roller offers higher impact resistance and longer durability.
• Available in Natural, Black, Gold or Black/Gold


530 X-Ring (BMXR) Chain

• 9,700lbs Tensile Strength
• Offering 1.5 to 2x longer wear resistance than regular O-ring chains.
• Each refined component, designed with computer analysis, provides higher tensile strength.
• Specially controlled heat treatment means tougher material and more durability.
• Quad seal ring and reinforced pin and roller provide superior wear resistance, higher impact resistance and fatigue strength.
• Quad seal ring offers less friction, which minimizes power loss, almost half that of standard O-ring chain.


530 High Strength BMZR Chain- Recommended for all baggers

• 11,200lbs Tensile Strength
• Includes Rivet Master Link
• Specifically developed for today’s high-performance sport machines.
• High-quality components coupled with a factory-greased seal ring ensures superior rigidity.
• High-tensile steels used throughout the chain components; larger pins mean loads spread out over wider area, resulting in longer life and more strength.
• Specially controlled heat treatment means tougher material and more durability.
• Available in Chrome, Black, Gold or Black/Gold

 530 EK 3D Chain- High Strength, Recommended for all baggers

3D
parts are precisely manufactured, leading to a greater improvement of
transmission efficiency, better acceleration and efficient engine work.
Features an original special plate with a lightening hole. EK creates a
hole on both ends of a pin to lighten the chain without weakening the
plate according to computer analysis. The edge-cut inner plate reduces
friction and realizes smooth engagement with sprocket. This plate
enables the chain to be light, removes mud from the hole and dissipates
heat effectively.

• 11,400lbs Tensile Strength
• Includes Rivet Master Link
• Reduced friction
• Chromium carbide pin with lighten hole in end
• Inner plate with lighten hole
• Dimpled outer plate.
• QX-2 ring

***IF YOU DONT SEE A SPROCKET OR CHAIN OPTION IN THE DROP DOWN MENUS IT MEANS WE ARE OUT OF STOCK OF THAT SPROCKET OR CHAIN***
